Metal Baler

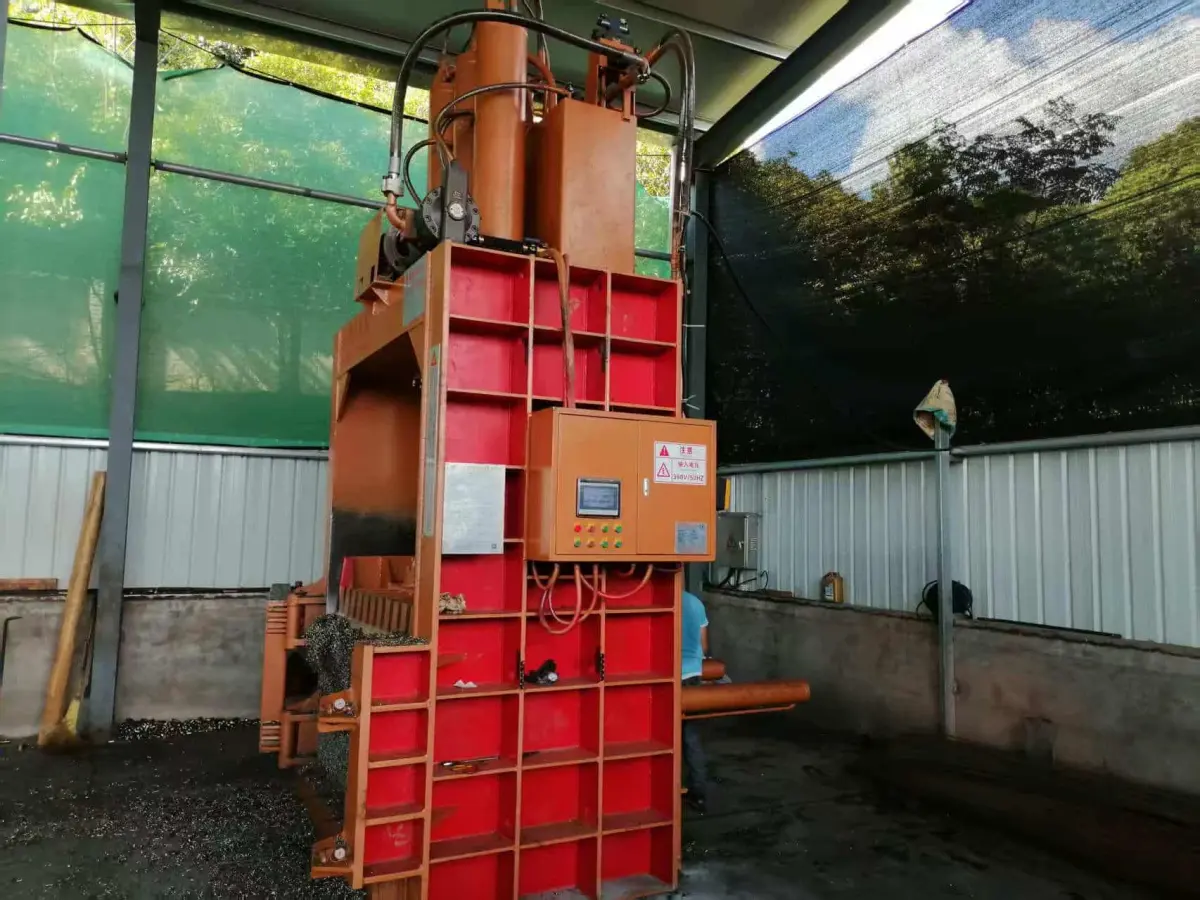

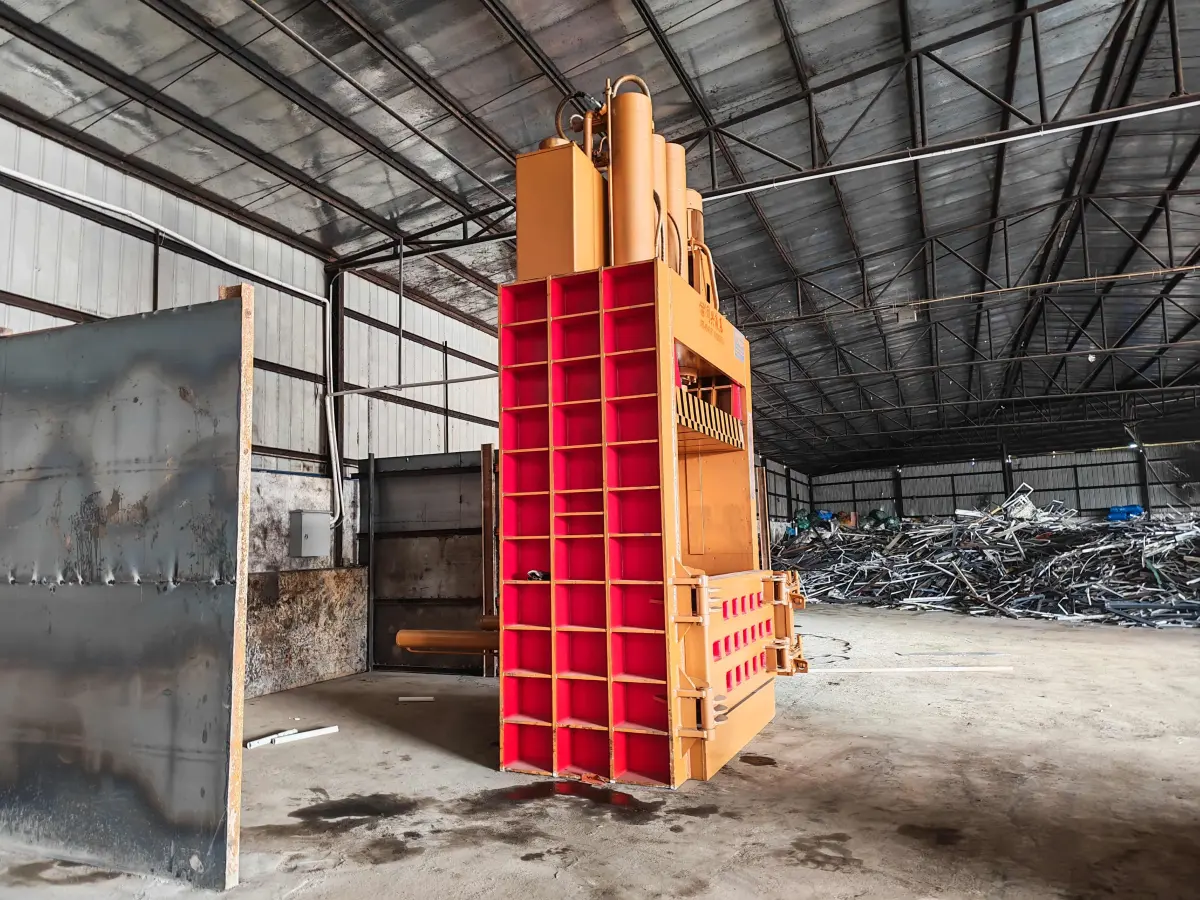

Vertical Stainless Steel & Aluminum Baler

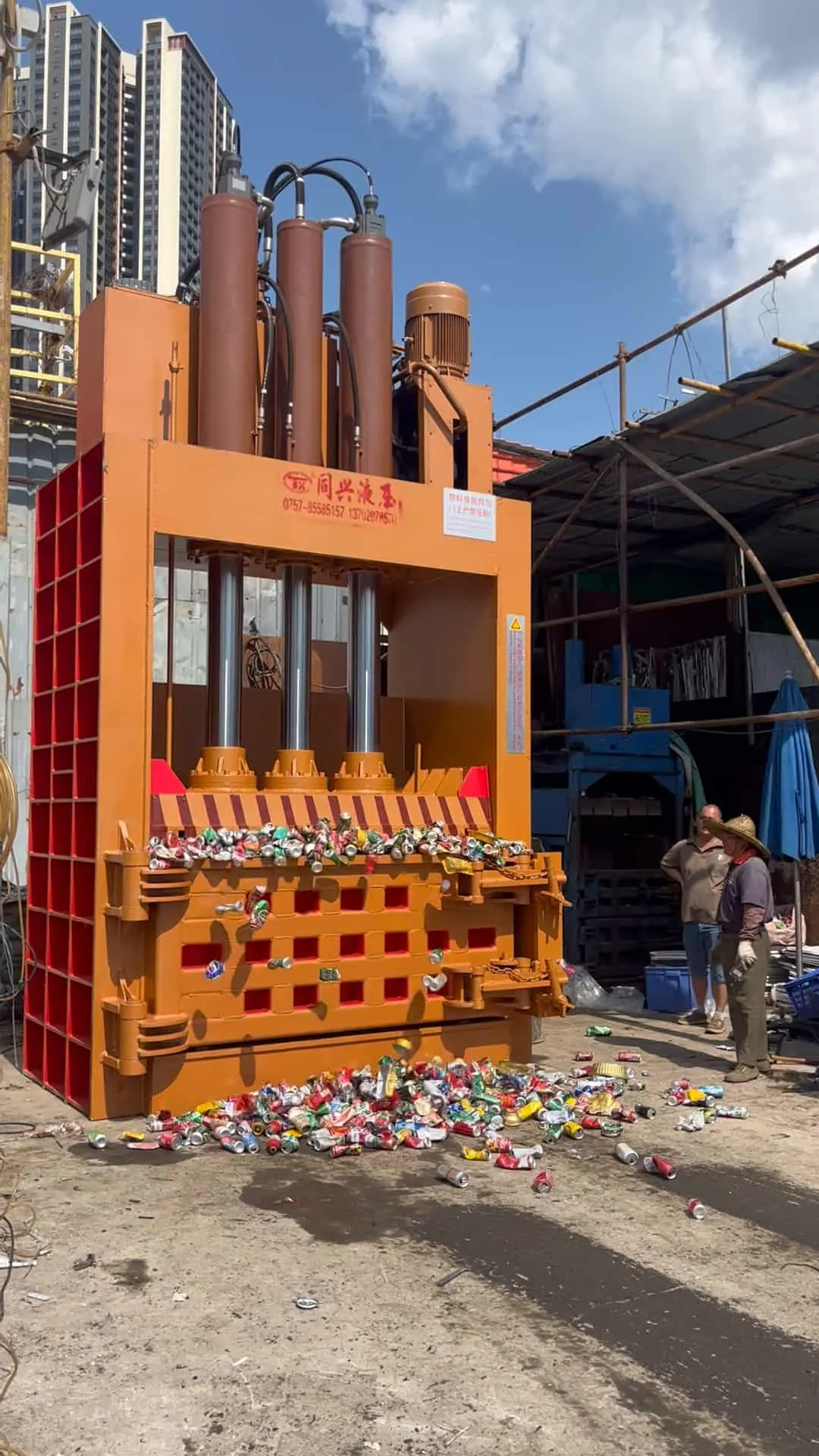

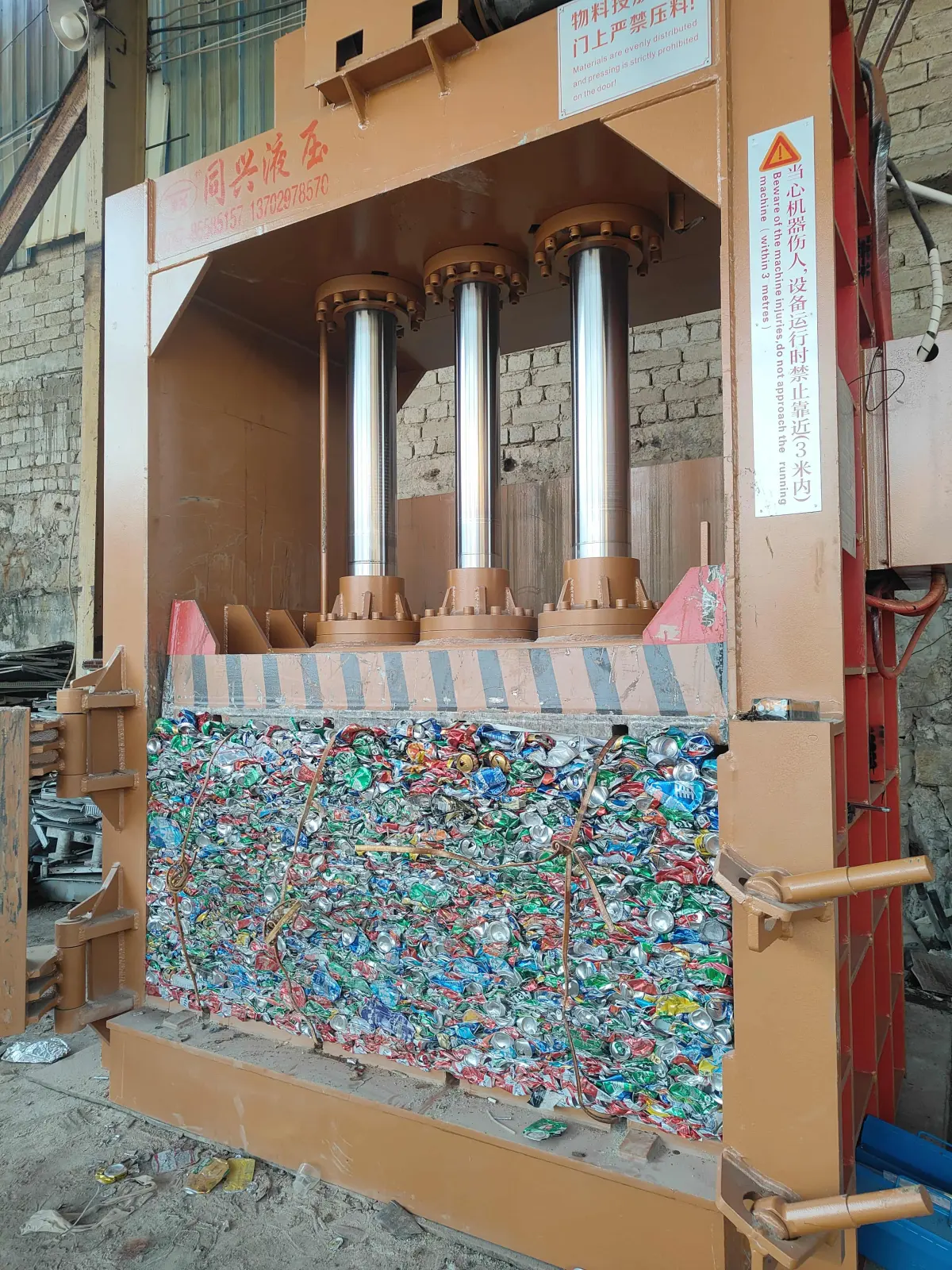

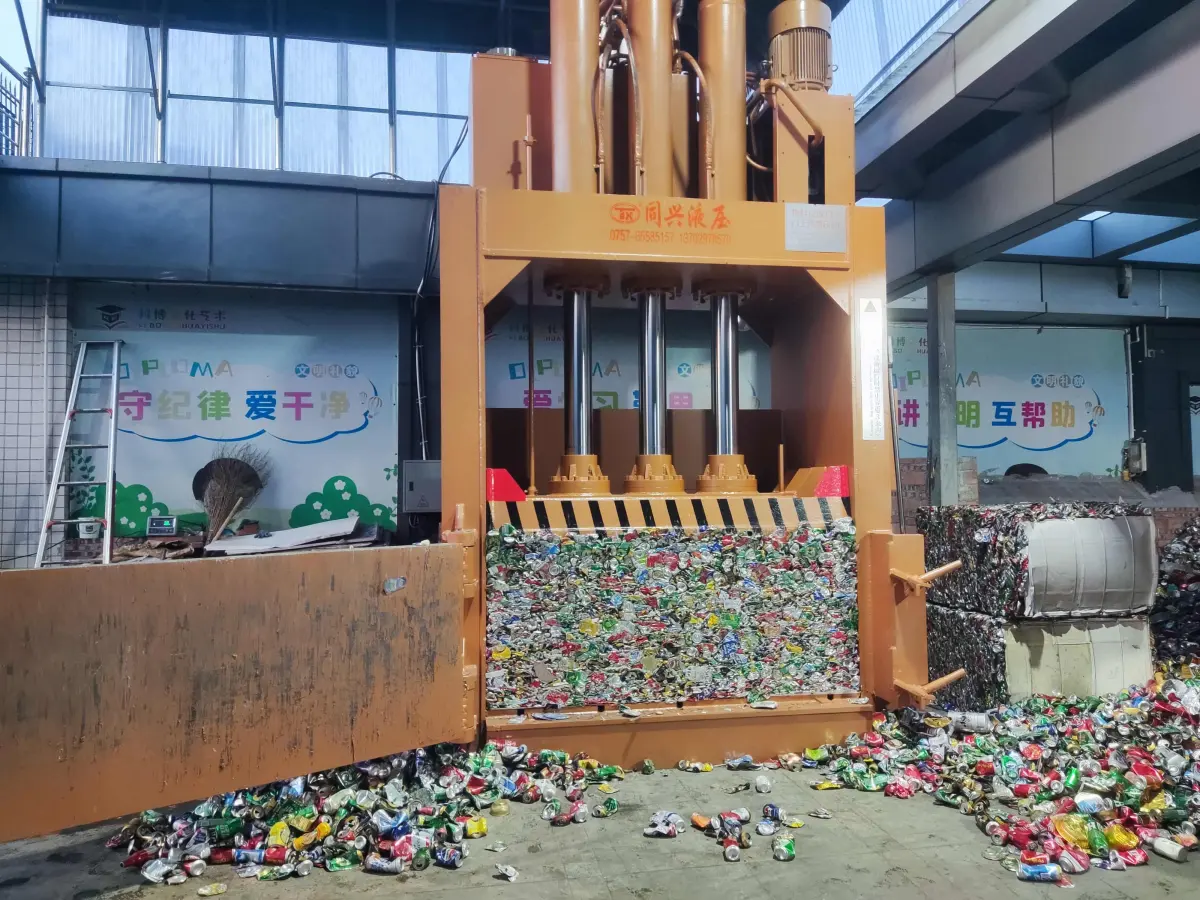

This series of vertical metal balers is specially designed for compressing and baling various types of scrap metal, including stainless steel scrap, aluminum scrap, aluminum cans, metal chips, and other non-ferrous metal waste. The machine compresses loose scrap into compact, dense bales, which can then be manually strapped for secure handling. This helps reduce material volume, save storage space, and improve the efficiency of stacking, storage, and transportation.

Product Features

Hydraulic Vertical Compression：Equipped with high-precision guide rails, the machine compresses scrap metal vertically from top to bottom into high-density bales for easier storage and
Automatic Start & Stop, Reduced Energy Consumption：The machine automatically stops and enters sleep mode when there is no baling operation. It restarts automatically when baling resumes, reducing standby power consumption and operating costs.
Operation Modes：Supports remote control operation and operation through the machine's control screen for flexible and convenient use.
High-Quality Steel Construction：Built with high-quality steel plates meeting international standards, providing a stronger, wear-resistant, and more durable chamber.

Product Details

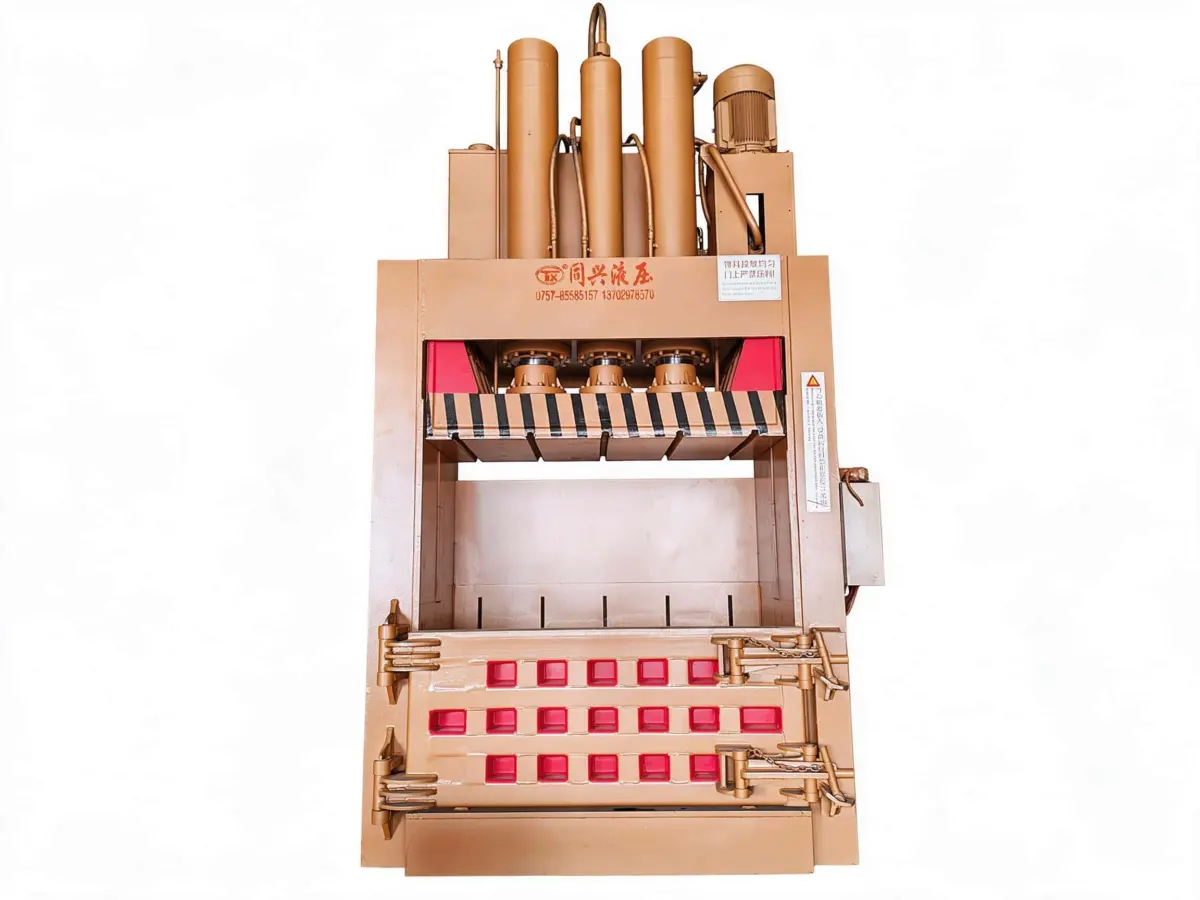

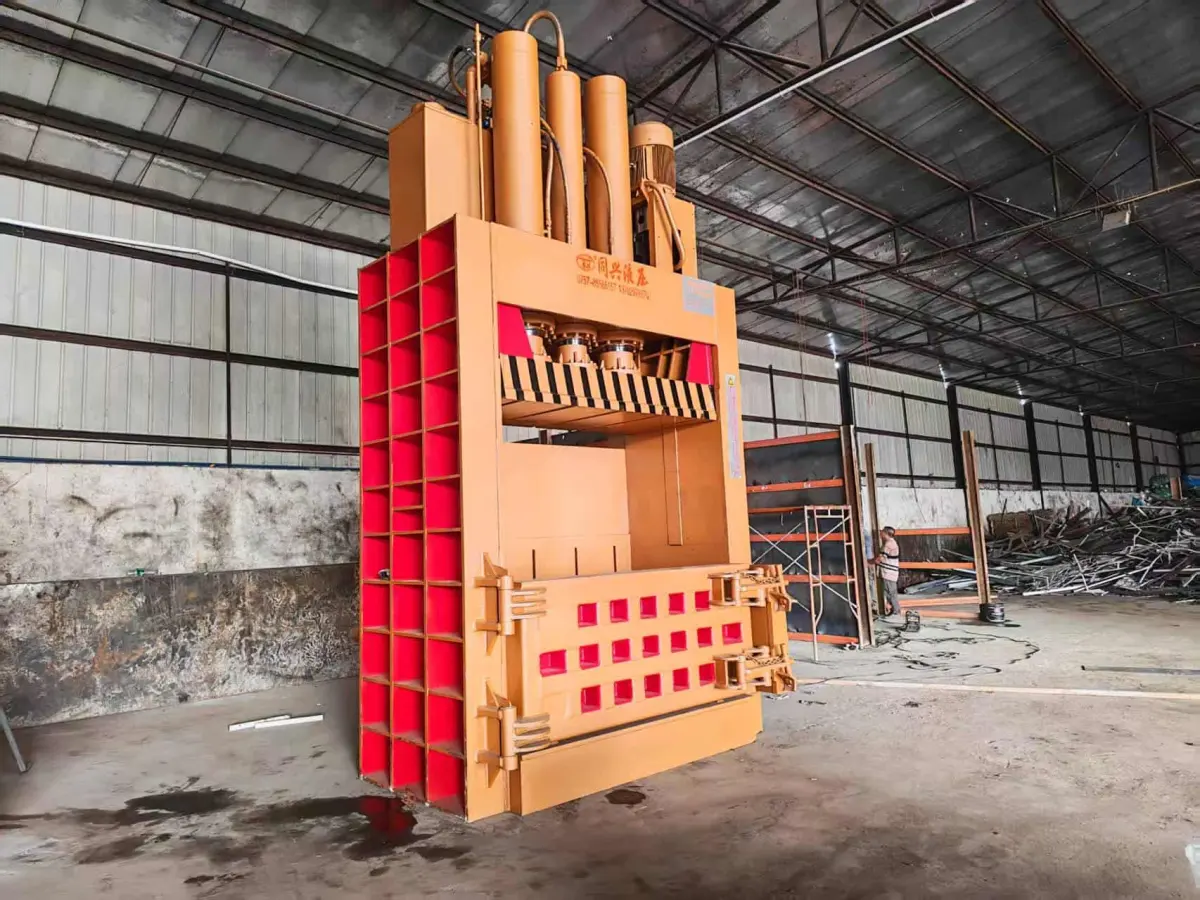

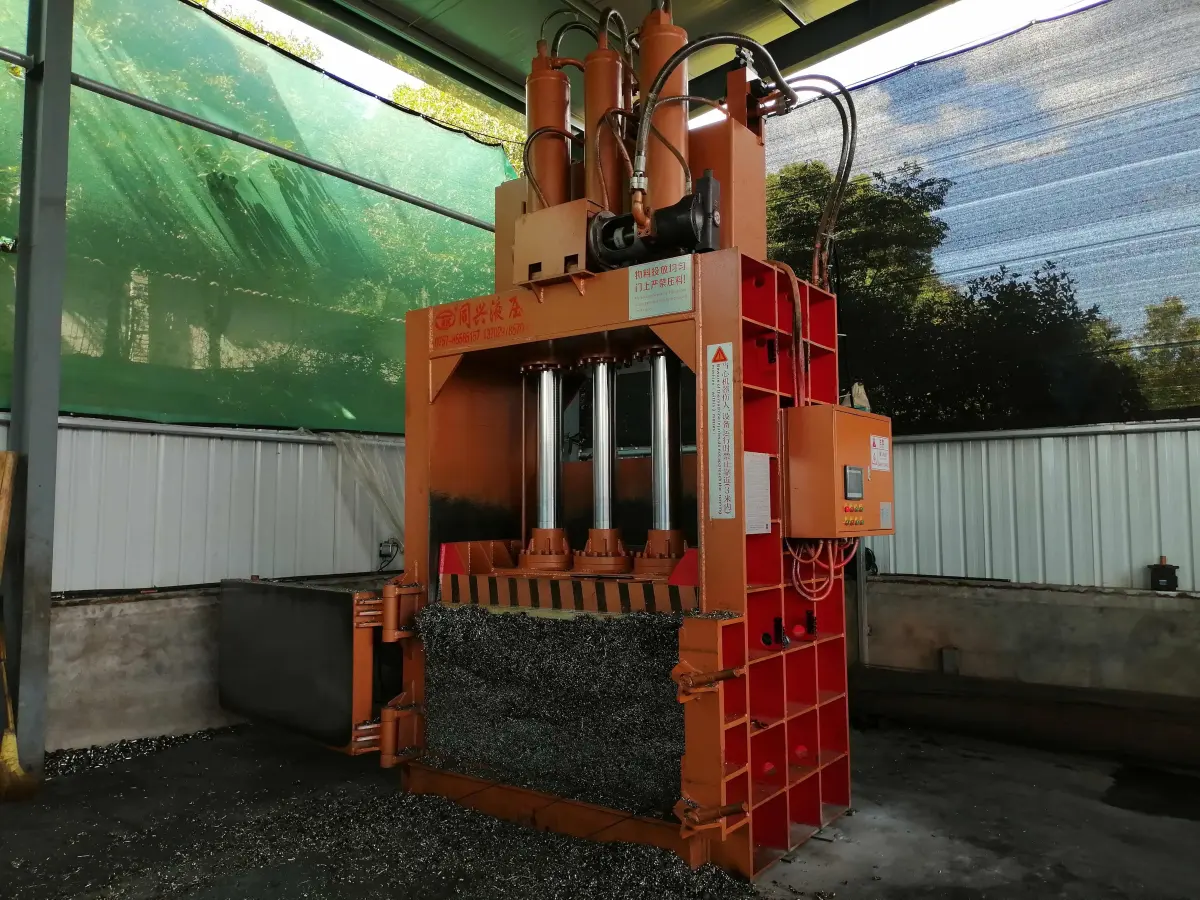

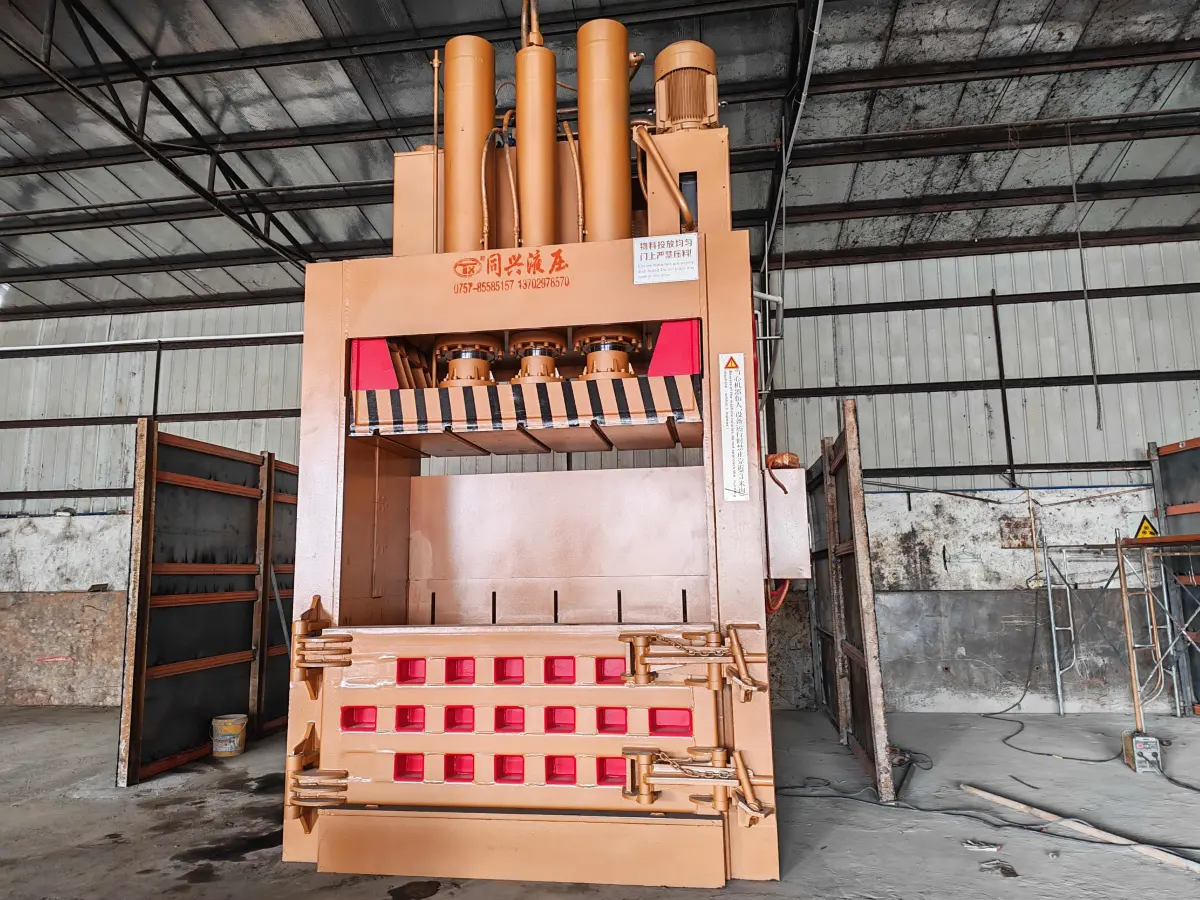

300T–750T Vertical Stainless Steel & Aluminum Baler

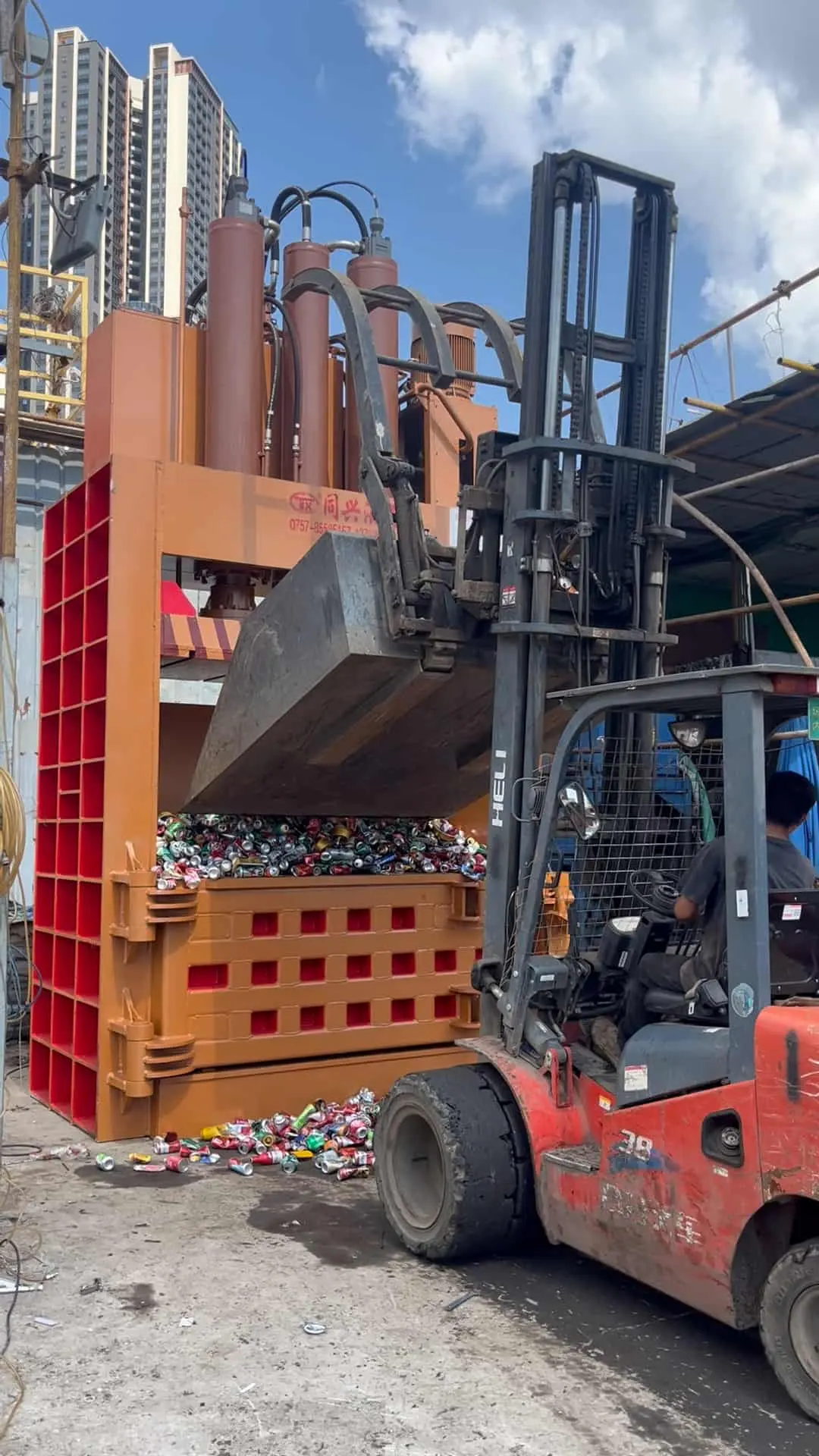

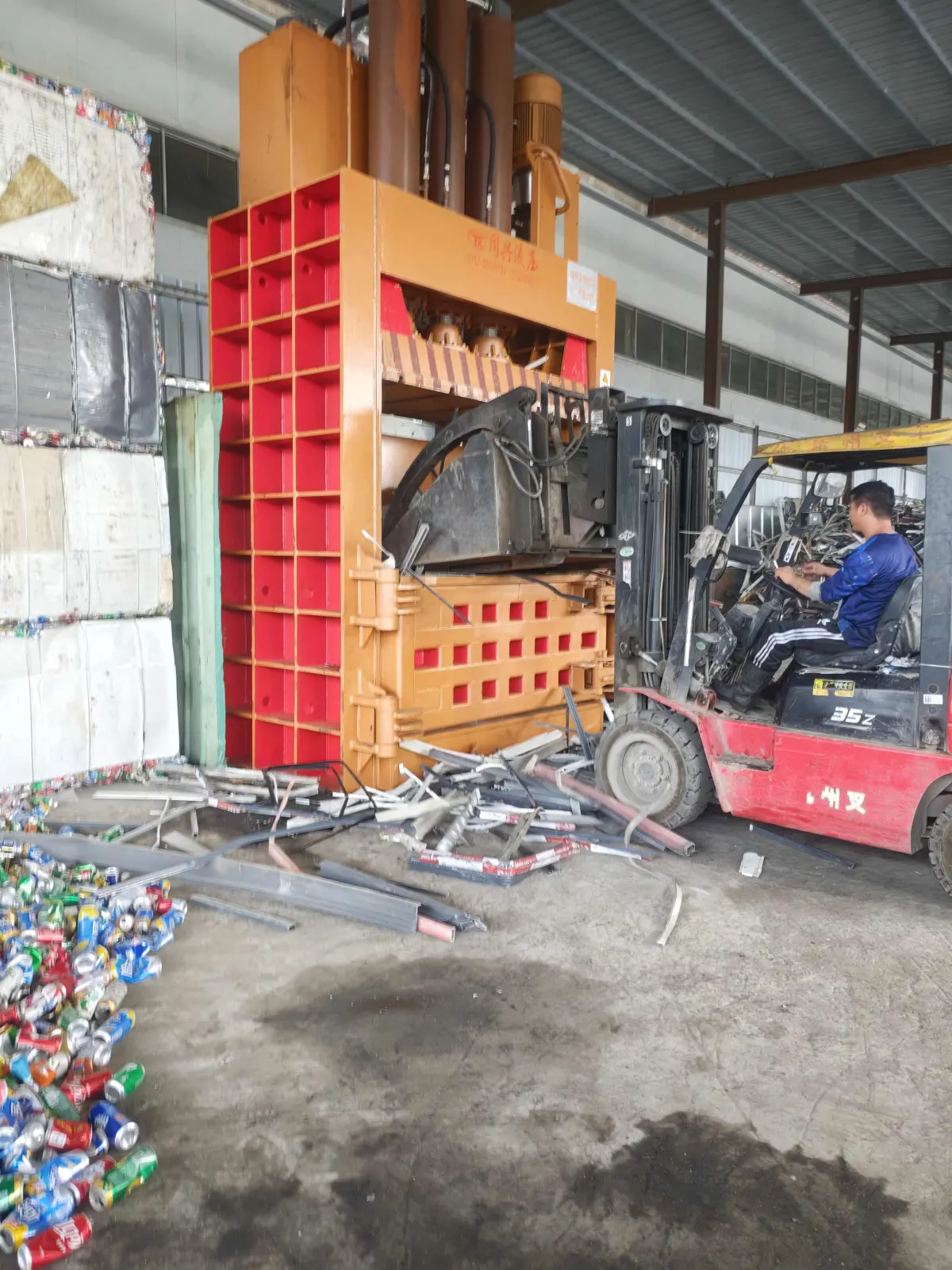

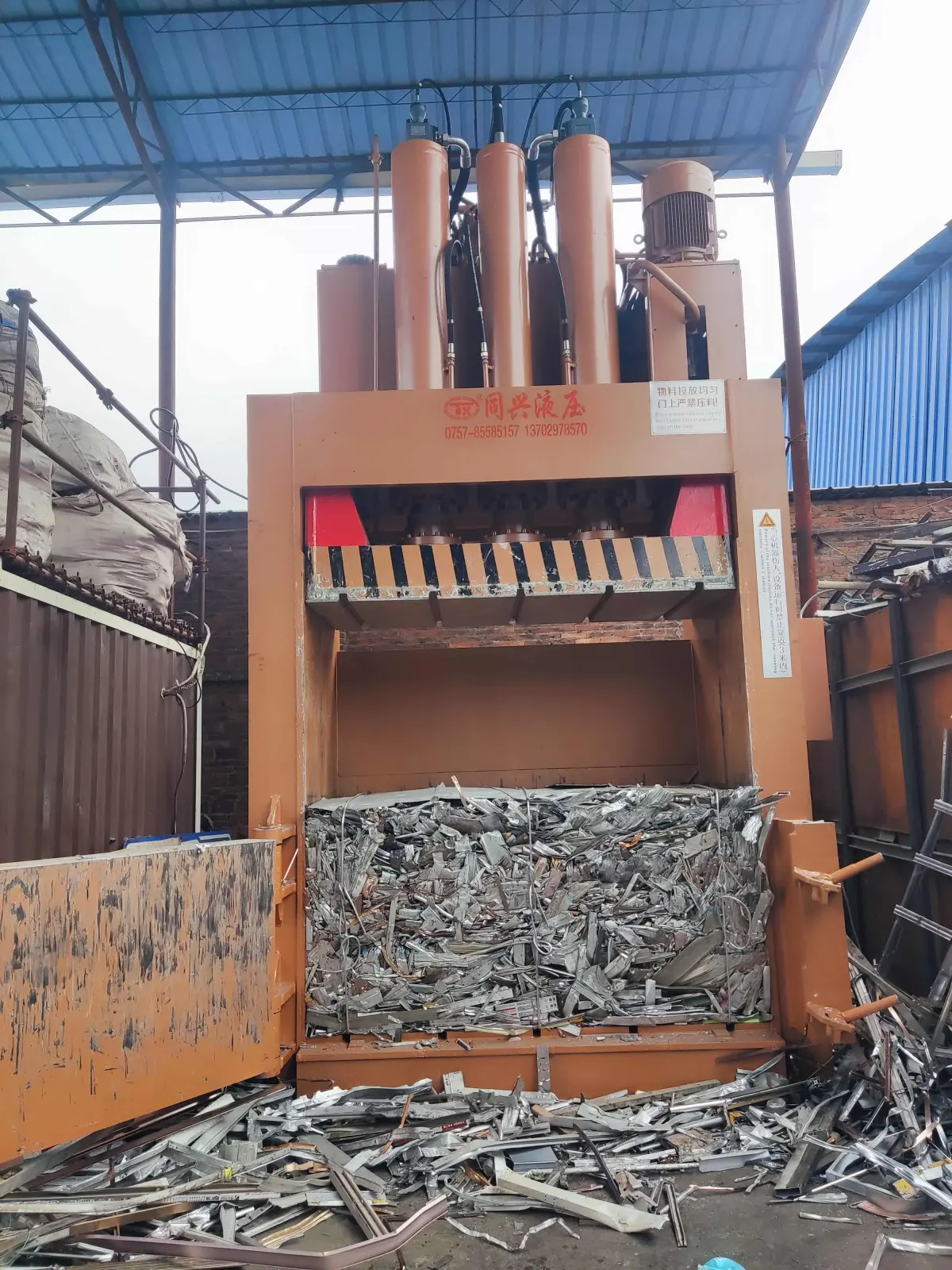

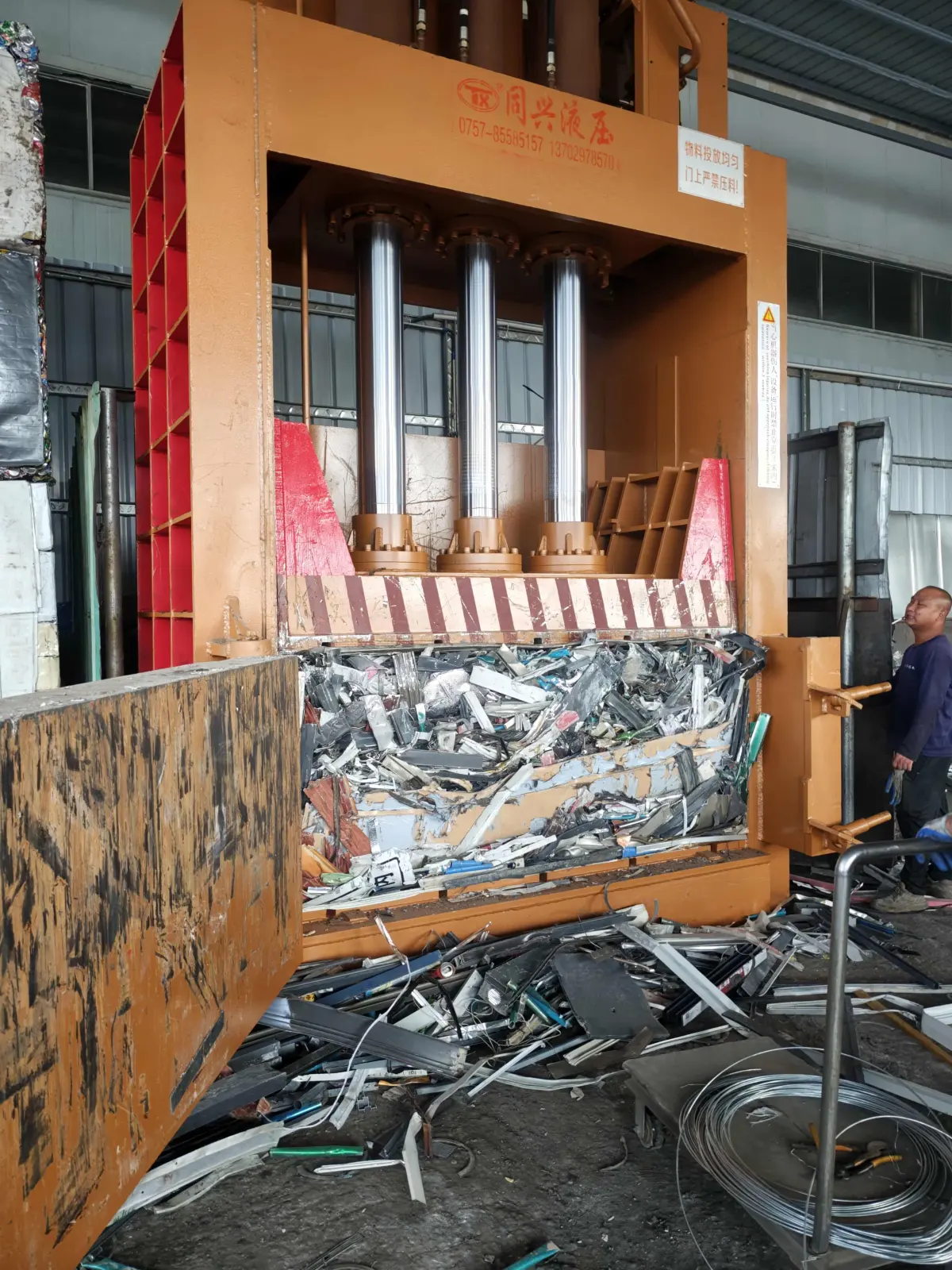

The 300T–750T Vertical Metal Baler is designed for compacting lightweight and loose metal scrap, including aluminum cans, stainless steel scrap, aluminum profiles, aluminum offcuts, metal chips and other non-ferrous scrap.

Standard models include 300T, 370T, 420T and 470T, with customized configurations available up to 750T and beyond.

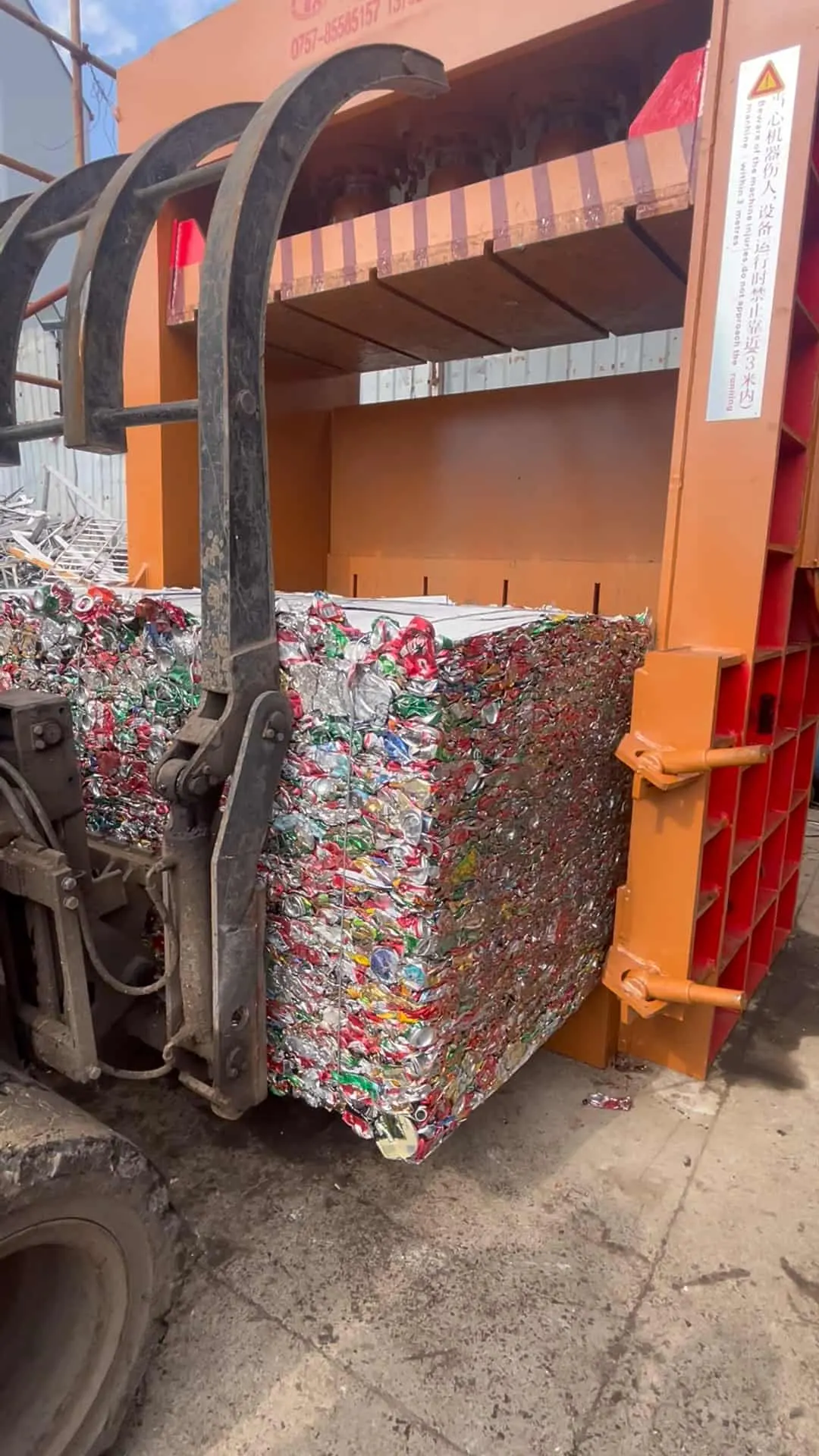

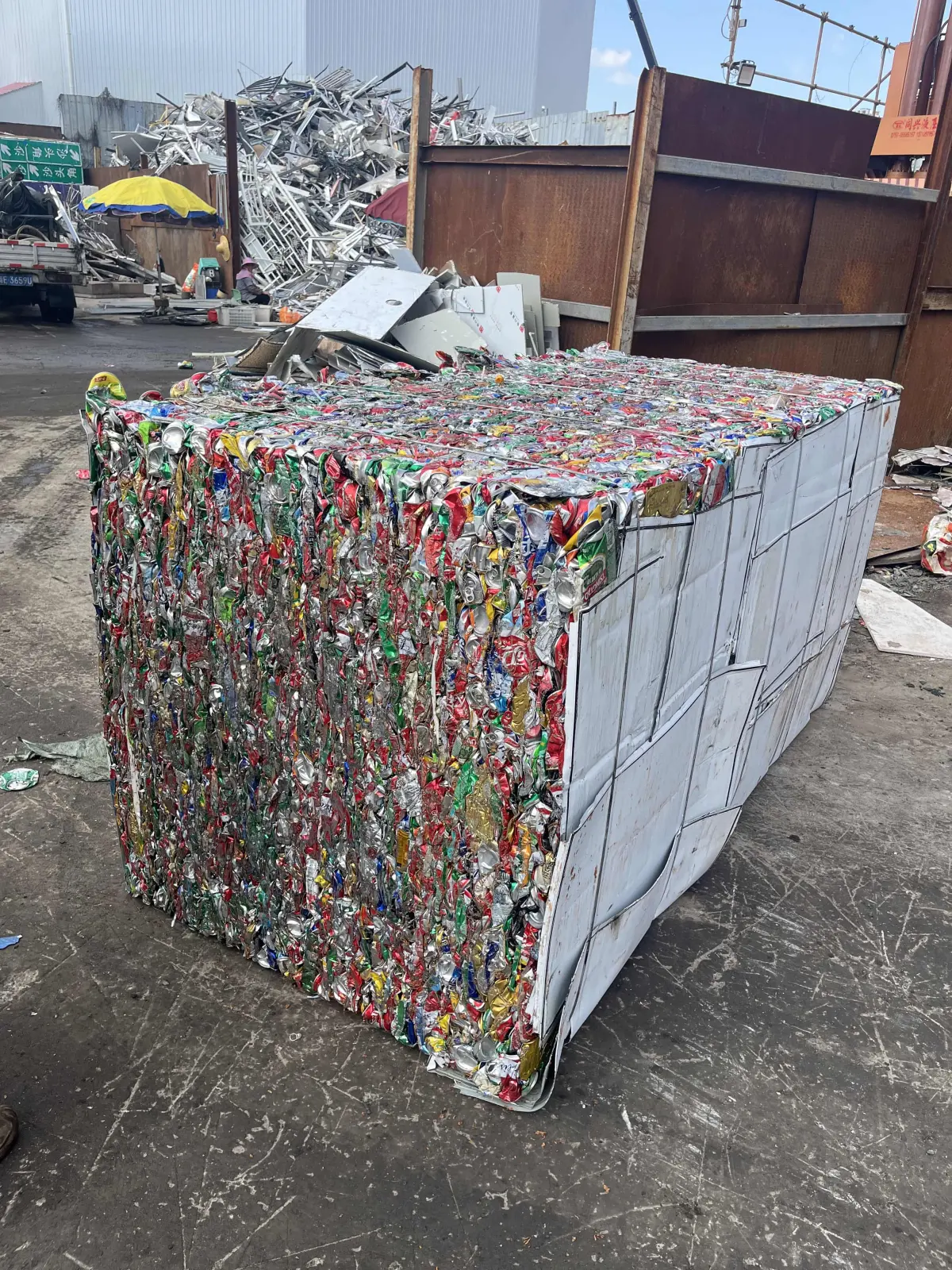

The machine compresses loose scrap into compact, high-density bales, helping reduce material volume, save storage space and improve handling and transportation efficiency. The simple operating system can typically be managed by 1–2 operators.

A remote control system is provided as standard. An optional infrared safety monitoring system can detect personnel entering the designated hazardous area and automatically stop the machine for enhanced operating safety.

Technical Specifications

Model	Feeding Port (L×W×H, mm)	Motor Power (KW)
300T	2000×1100×1000	22
370T	2300×1150×1000	37
420T	2300×1150×1000	37
470T	3000×1150×1000	45

Available pressing force: 300T–750T+Custom configurations: Available according to project requirements.

Applications

Suitable for:

Aluminum cans
Stainless steel scrap
Aluminum profiles and offcuts
Metal chips
Lightweight non-ferrous scrap

Key Features

300T–750T+ Pressing Force — Multiple models for different processing requirements.

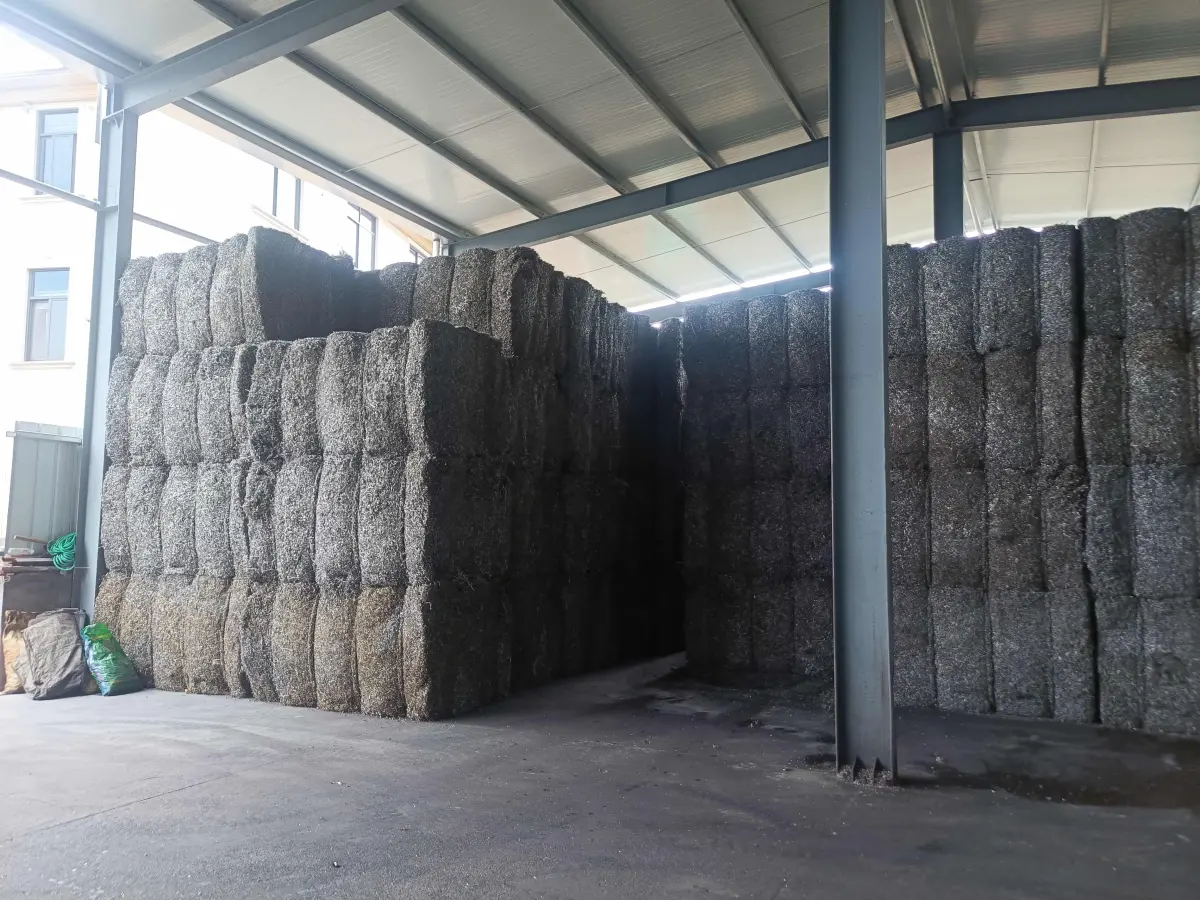

High-Density Baling — Reduces scrap volume and improves storage and transportation efficiency.
Simple Operation — Typically operated by 1–2 workers.
Remote Control — Standard remote operation for convenient control.
Safety Monitoring — Optional infrared personnel detection and automatic shutdown.
Heavy-Duty Construction — High-quality steel plates and reinforced components for reliable long-term operation.
Customized Design — Pressing force, chamber size, bale size, motor power, cooling and control systems can be customized.

Customization & Support

Tongxing Hydraulic provides customized solutions based on the customer's material, bale size, bale weight, processing capacity and installation space.

We also provide installation, commissioning, operation guidance and technical support to help customers operate the equipment efficiently.

Packaging & Shipping

The machine is professionally packaged according to its structure and transportation requirements to ensure safe loading, handling and international shipping.

Tongxing Hydraulic can also assist with equipment loading and export logistics.
